Data Integration serves as a centralized hub for managing patient-related documents, including scanned uploads, incoming faxes, and electronic labs. By categorizing documents as Administrative or Clinical, this system ensures efficient organization and accurate integration into patient charts. This guide provides detailed instructions for navigating Data Integration, uploading, linking, editing, and managing documents within Canvas Medical.

User’s Guide

This section outlines how to review and manage uncategorized reports within Canvas, whether you're working from the Schedule View or directly in a patient's chart.

Reviewing Uncategorized Reports

Uncategorized documents can be reviewed from two areas in the application:

From Schedule View

1. Navigate to the badge icons on the top-right of the Schedule View.

2. Click the triple dot menu to the right of the badges.

3. Select New Medical Documents.

4. A summary screen will appear showing all reports ready for review.

5. Choose the desired report to open:

   • Left Panel: Uncategorized Document Review Command

   • Right Panel: Report preview

6. Complete the following fields in the command:

   • Patient Message: Information for the patient (2048-character limit).

   • Patient Communication: Method of delivering the message.

   • Internal Comment: Staff-only notes (2048-character limit).

7. Click Sign to finalize the review.

From the Patient Chart

1. Use the search bar in the Schedule View to locate and open the patient’s chart.

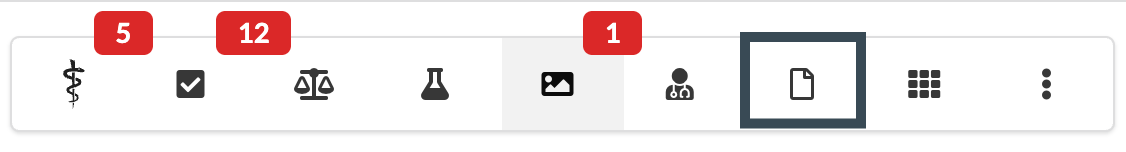

2. Click the Medical Documents icon located in the top-right panel.

3. Select the card of the medical document you wish to review to expand it. Reports pending review will display a red badge in the upper-right corner of the card. The sorting logic for the cards is as follows:

   • Documents requiring review by the logged in user will be listed first

   • Documents that need review and are assigned to a team the logged-in user is part of will show second

   • All other documents not assigned to the logged in user or their team(s) will be sorted by descending occurrence date

4. Click Review to open the review modal. This modal displays the PDF document for the medical document along with review fields.

   • Heading: Displays the name of the document being reviewed

   • Patient message: Information to relay to the patient

   • Patient communication: Method to share message with the patient

     • Delegate call, can leave message: The caller can leave a message if the patient does not answer

       • A task will be created for the team with the responsibility Communicate Diagnostic Results to a Patient to call the patient and share the provider's message.

     • Delegate call, need patient to answer: The caller must speak to the patient directly and cannot leave a message.

       • A task will be created for the team with the responsibility Communicate Diagnostic Results to a Patient to call the patient and share the provider's message.

     • Already left message: A message has already been left for the patient based on what the provider reviewed.

     • Already reviewed with patient: The patient has already been made aware of what the provider reviewed.

   • Linked Items: The PDF of the reviewed item will automatically link here. You can attach related components of the patient's chart for reference.

   • Internal Comments: Content is only displayed internally for staff visibility. It will not display on any documents shared externally.

5. Click Sign to finalize the review process.

Reviewing Internal Comments for the Uncategorized Document Review

Internal comments for the Uncategorized Document Review are only visible on the command itself. Follow these steps to be routed directly to the command.

1. Navigate to the patient chart

2. Click the Uncategorized Records icon in the patient panel

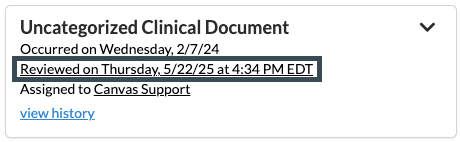

3. On the card for the uncategorized document, click Reviewed on [DATE] at [TIME]

4. A new tab will open that takes the user directly to the review command associated to the uncategorized document.



Assigning Processed Uncategorized Clinical Document to a New User or Team

Results can be assigned to a team or individual after the document has been processed through Data Integration and linked to a patient

Assigning Uncategorized Clinical Document to a Team

1. Click the Uncategorized Reports icon in the patient or user panel to open the result cards

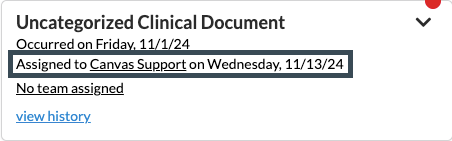

2. Click the team link on the card to open the dropdown. It will either say No Team Assigned or state the name of the team currently assigned



3. Select the team name from the dropdown

4. The document will show under the user's Uncategorized Reports in their panel

Assigning Uncategorized Clinical Document to an Individual User

1. Click the Uncategorized Reports icon on either the user or patient panels to open the document cards



2. Click the name of the assigned user to open the dropdown

   • A user will be assigned since it is required to process in Data Integration



3. Select name of new assignee

4. The uncategorized clinical document will show under the user's Uncategorized Reports in their panel

Related Resources

• Processing Documents via Data Integration
Learn how to upload and assign clinical documents from the Canvas Data Integration system.

• Understanding Commands
Explanation of how commands influence workflows and documentation
